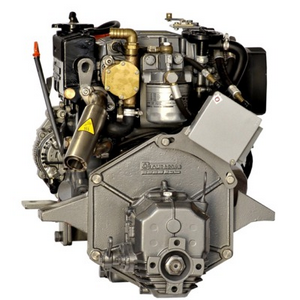

Engine Lombardini marine LDW 502 M

This series of diesel inboard engines, exceptionally lightweight and compact, can now offer the highest level of reliability, allowing to cope with greater security every situation and condition of use.
Cylenders 2
Bore e stroke 72 x 62
Displacement 505
Power max hp 13 hp
Power max kw 9,5kw
Power at the propeller hp  11,5 hp
power at the propeller kw 8,5 kw
compression ratio 22,3:1
r.p.m. 3600

Specifications

  • Fuel: Diesel
  • Cooling: Liquid Cooling
